What is a Perforated Panel?
A Placa Perfurada da LA Pisos Elevados representa um avanço notável em eficiência e funcionalidade para ambientes que requerem um sistema de ventilação eficaz.
Designed specifically for locations such as Data Centers, DPCs, and Electrical Rooms where air conditioning distribution is critical, this panel provides a smart and discreet ventilation solution.

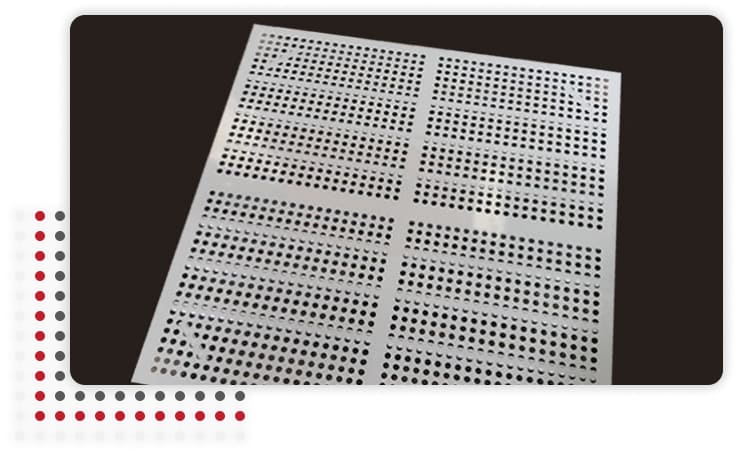

With strategically positioned perforations, the Perforated Panel allows conditioned air to flow directly under the raised floor, which ensures an even and controlled air distribution.
The LA Pisos Elevados Perforated Panel allows ventilation to reach a new efficiency level, ensuring continuous comfort and functionality without compromising the design and aesthetics of the space.
Placa Perfurada por L.A Pisos Elevados
Resistance Table
| PANEL MATERIAL | STEEL WITH ELECTROSTATIC EPOXY POWDER COATING, WITH INNER FILLING OF LIGHTWEIGHT CELLULAR CONCRETE. |
| DIMENSION | 600 X 600 X 30MM |
| RESISTANCE TO CONCENTRATED LOAD | 445 KG |
| RESISTANCE TO DISTRIBUTED LOAD | 1200 KG/M² |
| RESISTANCE TO CONCENTRATED LOAD WITH STRINGERS | 498 KG |
| RESISTANCE TO DISTRIBUTED LOAD WITH STRINGERS | 1360 KG/M² |
| IMPACT LOAD | 62 KG |
| LIVE LOAD | 400KG WITH 10,000 LOADING SESSIONS, WITH HEIGHTS FROM 100 TO 300 MM |
| RESISTANCE OF THE PEDESTAL WITHOUT DISTORTIONS | 1800 KG/M² |
| PANEL WEIGHT | 13 KG |
| SET WEIGHT | 42 KG/M² |
| PANEL MATERIAL | STEEL WITH ELECTROSTATIC EPOXY POWDER COATING, WITH INNER FILLING OF LIGHTWEIGHT CELLULAR CONCRETE |
| DIMENSION | 600 X 600 X 30MM |
| RESISTANCE TO CONCENTRATED LOAD | 490 KG |
| RESISTANCE TO DISTRIBUTED LOAD | 1280 KG/M² |
| RESISTANCE TO CONCENTRATED LOAD WITH STRINGERS | 560 KG |
| RESISTANCE TO DISTRIBUTED LOAD WITH STRINGERS | 1480 KG/M² |
| IMPACT LOAD | 68 KG |
| LIVE LOAD | 420KG WITH 10,000 LOADING SESSIONS, WITH HEIGHTS FROM 100 TO 300 MM |
| RESISTANCE OF THE PEDESTAL WITHOUT DISTORTIONS | 1800 KG/M² |
| PANEL WEIGHT | 14 KG |
| SET WEIGHT | 42 KG/M² |
| PANEL MATERIAL | STEEL WITH ELECTROSTATIC EPOXY POWDER COATING, WITH INNER FILLING OF LIGHTWEIGHT CELLULAR CONCRETE |
| DIMENSION | 600 X 600 X 30MM |
| RESISTANCE TO CONCENTRATED LOAD | 602 KG |
| RESISTANCE TO DISTRIBUTED LOAD | 1335KG/M² |
| RESISTANCE TO CONCENTRATED LOAD WITH STRINGERS | 560 KG |
| RESISTANCE TO DISTRIBUTED LOAD WITH STRINGERS | 1520 KG/M² |
| IMPACT LOAD | 78 KG |
| LIVE LOAD | 450KG WITH 10,000 LOADING SESSIONS, WITH HEIGHTS FROM 100 TO 300 MM |
| RESISTANCE OF THE PEDESTAL WITHOUT DISTORTIONS | 1800 KG/M² |
| PANEL WEIGHT | 15 KG |
| SET WEIGHT | 45 KG/M² |
| PANEL MATERIAL | NATURAL SLATE |
| RESISTANCE TO CONCENTRATED LOAD | 400 KG |
| RESISTANCE TO DISTRIBUTED LOAD | 1200 KG/M² |
| PANEL ASSEMBLY WEIGHT | 600x600x20MM 58 KG/M² |
| PANEL ASSEMBLY WEIGHT | 600x600x25MM 73 KG/M² |
| PANEL ASSEMBLY WEIGHT | 550x550x20MM 50 KG/M² |
| PANEL ASSEMBLY WEIGHT | 550x550x25MM 62 KG/M² |
| PANEL ASSEMBLY WEIGHT | 500x500x20MM 44 KG/M² |
| PANEL ASSEMBLY WEIGHT | 500x500x25MM 56 KG/M² |
What does the Perforate Panel Offer?
The design of our perforated panel was focused on efficiency and functionality, offering a number of benefits that contribute to the smooth operation and superior performance of these critical environments.
The Perforated Plate has a specific design to supply air conditioning systems, ensuring precise and efficient airflow distribution. The perforated profiles are strategically placed to direct air in an even and controlled manner. This ensures more balanced air conditioning and effective heat dissipation in locations that require tight thermal control.
The Perforated Panel is an efficient approach for optimizing small-sized spaces. When the air conditioning is distributed under the raised floor, wall and ceiling space is freed up, which provides a more flexible arrangement of equipment and facilities.
The Perforated Panel optimizes the air distribution and makes the maintenance easy as well. Quick and easy access to the areas under the raised floor enables regular inspections and maintenance of the air conditioning systems with minimal disruption. This results in a more reliable operating environment and extends the equipment service life.
Learn more about the structure
Pedestals:

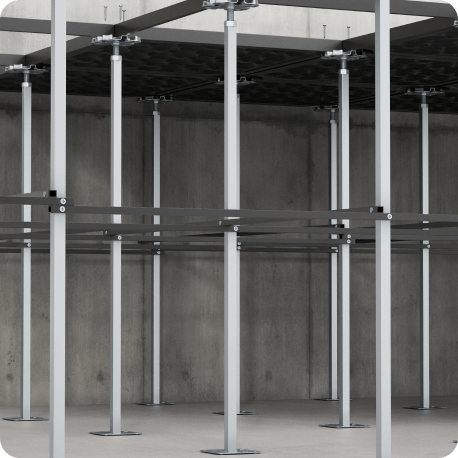

Consist of cold-rolled carbon steel sheets measuring approximately 100 mm x 100 mm x 2 mm, with ribs to ensure greater torsional rigidity, a grounding spur, and two holes in the corners for fixing to the floor with glue or screws. It is welded to a square carbon steel tube measuring 22.5 mm x 22.5 mm and 1.5 mm thick, which is connected to the support plate by projection welding.
Crossbars:
Produced with SAE1006 EDD 2 mm cold-rolled carbon steel, with 75 kVA projection welding, and dimensions of approximately 95 mm x 95 mm. The crossbar is drawn and spun in the shape of a cross to fix and lock the panels without screws.
Stringers:

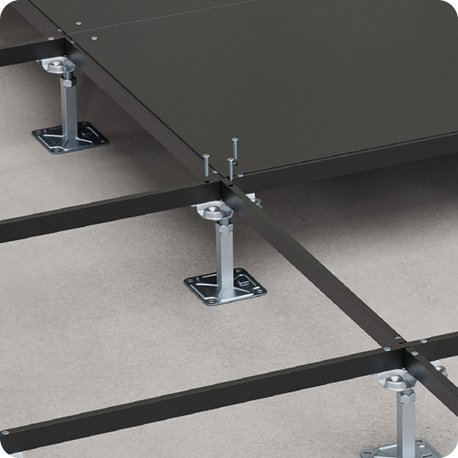

Consist of a SAE 1010/20 rectangular carbon steel tube of 18 x 30 mm, with a wall thickness of 1.20 mm and a length of 1,180 mm. It is a raised floor component to finish locking the structure from 400 mm to ensure greater resistance, with ribs and extended threads in the upper crossbar portion, so that stringers can be better supported and fixed.
Perimeter edge:
Produced as 2 mm steel sheets, drawn as T-sections, and with 75 Kva projection welding to allow better adaptation to the edges of the panels. They are used in cut-outs to give the raised floor more stability.
