The perfect match between nature textures and functionality

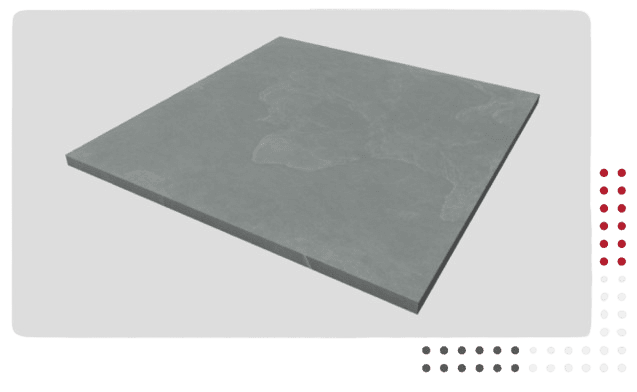

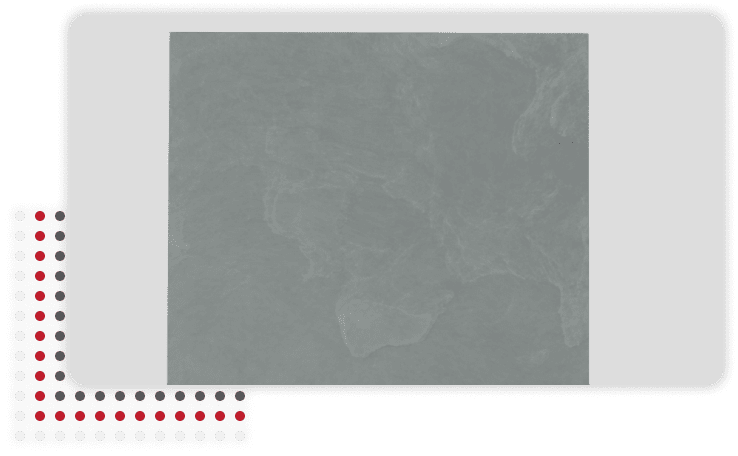

What is a Slate Raised Floor?
Slate is a metamorphic rock with a rich texture and earthy undertones. It can be dexterously transformed into modular plates and enhance the atmosphere of any space.
This type of flooring represents the perfect balance of natural elegance and versatility, providing a sophisticated look and a durable surface, which can withstand daily use.
Slate raised flooring is not only visually fascinating, but also offers practical benefits for your space. Its indisputable durability and resistance to wear, stains, and scratches make it the perfect choice for overcrowding areas. Its indisputable durability and resistance to wear, stains, and scratches make it the perfect choice for overcrowding areas.
Resistance Table
| PANEL MATERIAL | NATURAL SLATE |
| RESISTANCE TO CONCENTRATED LOAD | 400 KG |
| RESISTANCE TO DISTRIBUTED LOAD | 1200 KG/M² |
| PANEL ASSEMBLY WEIGHT | 600x600x20MM 58 KG/M² |
| PANEL ASSEMBLY WEIGHT | 600x600x25MM 73 KG/M² |
| PANEL ASSEMBLY WEIGHT | 550x550x20MM 50 KG/M² |
| PANEL ASSEMBLY WEIGHT | 550x550x25MM 62 KG/M² |
| PANEL ASSEMBLY WEIGHT | 500x500x20MM 44 KG/M² |
| PANEL ASSEMBLY WEIGHT | 500x500x25MM 56 KG/M² |
What does a Slate
Raised Floor Offer?
Slate raised flooring is a seamless combination of timeless natural beauty with the modern functionality of raised access flooring. Its remarkably elegant aspect and a range of practical benefits make slate raised flooring an option that goes beyond commonplace.
Slate is known for its rich texture and color nuances that create naturally appealing aesthetics. When you choose slate raised flooring, you give your space a unique and authentic atmosphere that can range from rustic to modern.
Durability is one of the most important characteristics of slate. It is the perfect choice for overcrowding areas since the slate has a sturdy structure that withstands heavy traffic. Slate raised floors are designed to withstand wear from daily use and to look undamaged for years, which reduces maintenance and replacement costs.
Not only is slate durable, but it is also naturally resistant to stains and dirt. This makes cleaning and maintenance easy, being a convenient choice for commercial and business spaces. Simple, regular maintenance will be enough to make your slate raised flooring beautiful and functional for many years to come.
Slate has inherent thermal and acoustic insulation properties. For that reason, slate raised flooring can contribute to a most comfortable and energy-efficient space. It helps maintaining the room temperature and reducing unwanted noise transmission, which results in a more pleasant and inviting space.
Learn more about the structure
Pedestals:
Consist of cold-rolled carbon steel sheets measuring approximately 100 mm x 100 mm x 2 mm, with ribs to ensure greater torsional rigidity, a grounding spur, and two holes in the corners for fixing to the floor with glue or screws. It is welded to a square carbon steel tube measuring 22.5 mm x 22.5 mm and 1.5 mm thick, which is connected to the support plate by projection welding.
Crossbars:
Produced with SAE1006 EDD 2 mm cold-rolled carbon steel, with 75 kVA projection welding, and dimensions of approximately 95 mm x 95 mm. The crossbar is drawn and spun in the shape of a cross to fix and lock the panels without screws.
Stringers:
Consist of a SAE 1010/20 rectangular carbon steel tube of 18 x 30 mm, with a wall thickness of 1.20 mm and a length of 1,180 mm. It is a raised floor component to finish locking the structure from 400 mm to ensure greater resistance, with ribs and extended threads in the upper crossbar portion, so that stringers can be better supported and fixed.
Perimeter edge:
Produced as 2 mm steel sheets, drawn as T-sections, and with 75 Kva projection welding to allow better adaptation to the edges of the panels. They are used in cut-outs to give the raised floor more stability.
